PRODUCT RANGE AND SPECIALITIES

Frame : 160 TO 355

Output : 7.S0kVA to 625kVA

Voltage (V) : 240 / 415V

Frequency (Hz) : 50 / 60 Hz

Insulation : H

RPM : 1500

Enclosure IP : 20

Regulation : +/- 1%

STANDARDS

IEC 60034-1 - Rotating electrical machine ratings and performances.

BS EN 60034 - Rotating electrical machines.

IS: 4722 - Indian standard for rotating electrical machines.

IS 13364 - AC Generator driven by reciprocating internal combustion engines.

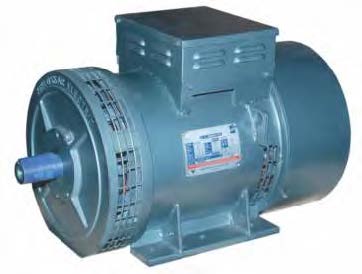

AC Generators

ABOUT

AC Generators are available with double bearing or single bearing with SAE flanges of 00, 0, 1/2, 1, 2 & 3 and disc couplings of 10, 11.5, 4, 18 & 21 combinations. Special AC Generators can be offered against customer request.

SPECIAL FEATURES

Compact and aesthetically built.

Conforms to all leading industries & marine standards.

Simple to install and maintain.

Wide range of flange adaptors and single bearing flexi disc couplings.

Paralleling with other generators or main grid.

Sophisticated and reliable AVR, having good quality to non linear loads.

Self lubricated, sealed type ball bearings.

Wound with 2/3 pitch in stator to reduce harmonic effect.

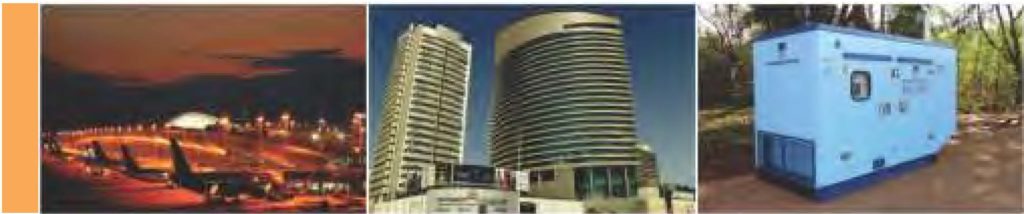

APPLICATIONS OF GENERATORS

Industrial Duty - Standard & special types

Marine Duty - Merchant & Navy ships

Non Linear Loads - Telecom, DC Drives, Battery Chargers & Computers

Impact Loads - Motor starting, lifts & furnaces

Unbalance Loads - Generally not permitted, however upto 20% for 3-Phase unbalance.
